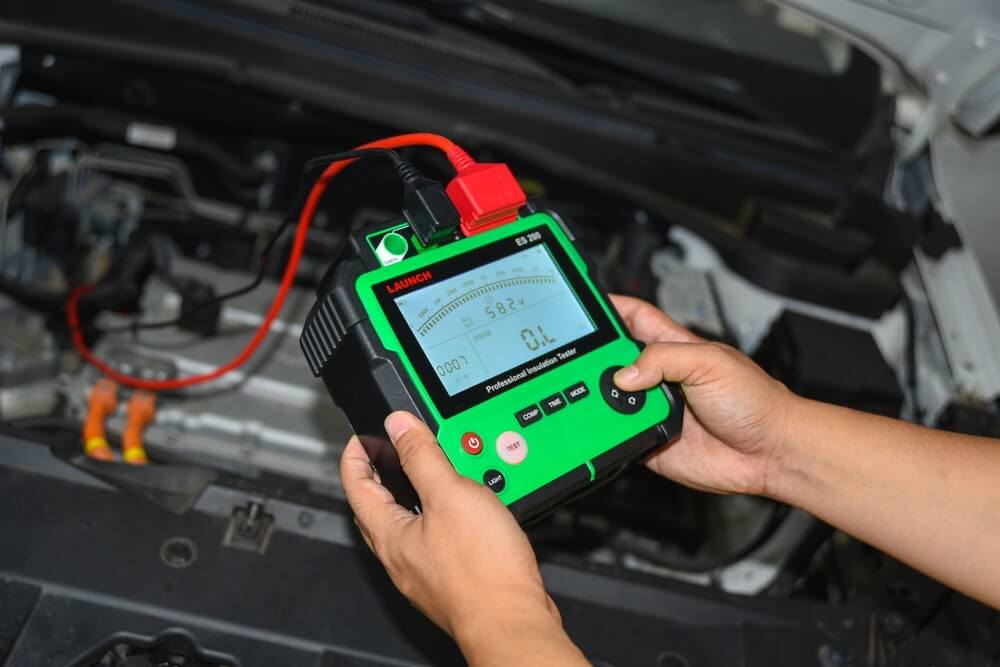

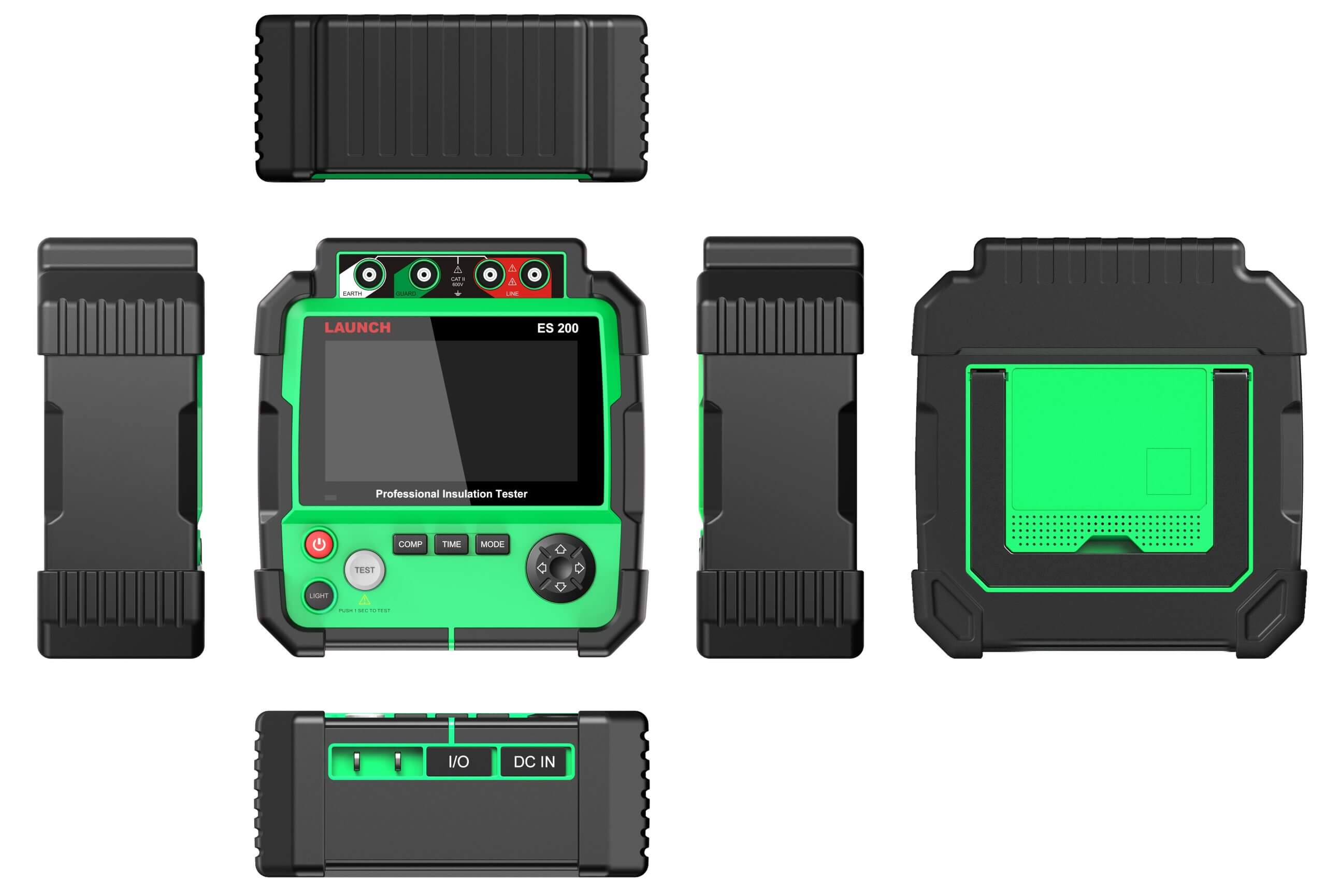

ES200 EV Insulation Resistance Tester
Finance or Capricorn payments available
Overview
Insulation resistance meters are commonly known as megohm meters, or shake meters, high resistance meters, insulation resistance testers, etc. It is reflected by insulation resistance. The product insulation resistance which is measured refers to the insulation resistance between the live part and the exposed non-live metal part (case). Using an insulation tester for measurement can effectively protect the safety of maintenance personnel.
Features
- ES200 is capable of measuring insulation resistance, and also innovatively increases the voltage measurement function.
- Equipped with standard resistance, in the comparison measurement mode, the measured resistance value is compared with the standard resistance to ensure the measurement accuracy.
- Three measurement modes: timing measurement, comparison measurement, continuous measurement, and omnidirectional measurement.
Specification
|
BATTERY |
3150mAh |
|
DIAPLAY |
5” |
|
WORKING TEMPERATURE |
0~50°C |
|
DIMENSIONS |
180*174*65.5(mm) |
|
WEIGHT |
1.7kg |
AC AND DC Voltage Test Performance Parameters:
|
VOLTAGE TYPE |
DC Voltage |
AC Voltage |
|
MEASURING RANGE |
±30~±600V |
30~600V(50/60Hz) |
|
RESOLUTION |
1V |
1V |
|
MEASUREMENT ACCURACY |
±3% |
±3% |
Insulation Resistance Test Performance Parameters:
|
TEST VOLTAGE |
500V |
1000V |
2000V |
5000V |
|
MEASURING RANGE |
0.0MΩ~20GΩ |
0.0MΩ~40GΩ |
0.0MΩ~100GΩ |
0.0MΩ~1000GΩ |
|
OPEN CIRCUIT VOLTAGE |
DC500V(0~20%) |
DC1000V(0~20%) |
DC2000V(0~20%) |
DC5000V(0~20%) |
|
MEASUREMENT ACCURACY |
0.0MΩ~99.9MΩ: ±(3%+5) 100MΩ~9.99GΩ: ±(5%+5) 10.0GΩ~20.0GΩ: ±(10%+5) |
0.0MΩ~99.9MΩ: ±(3%+5) 100MΩ~9.99GΩ: ±(5%+5) 10.0GΩ~40.0GΩ: ±(10%+5) |
0.0MΩ~99.9MΩ: ±(3%+5) 100MΩ~9.99GΩ: ±(5%+5) 10.0GΩ~100GΩ: ±(10%+5) |
0.0MΩ~99.9MΩ: ±(3%+5) 100MΩ~9.99GΩ: ±(5%+5) 10.0GΩ~99.9GΩ: ±(10%+5) |
|
SHORT CIRCUIT CURRENT |
<3.0mA |
